GYFXTY

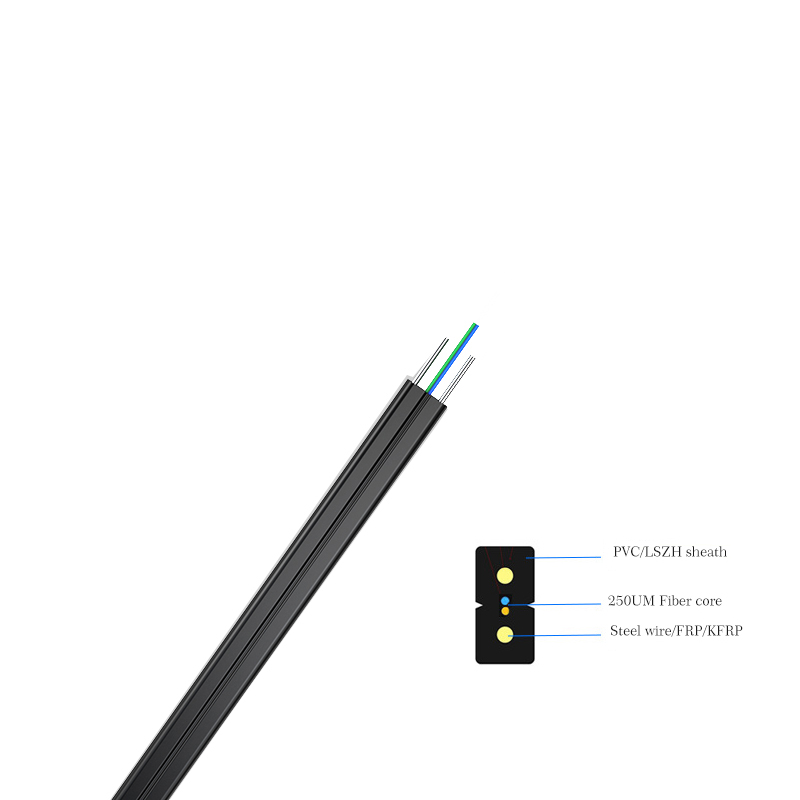

Outdoor drop cable having FRP rods as strength members and containing 4 6 12 24 fiber in full compliance with ITU-T G 652D or G 657A1 The offered cables are fully compliant to the relevant IEC specifications

E-mail:sales@fiberspeed.com.cn
Product introduction
* 4/6/8/12/24 enhanced low water peak single mode fibers in full compliance with ITU-T-G.652D/G.657A1
* two all dielectric strength members (FRP)
* loose buffer tube fully filled and centrally placed in the cable
* UV stablized HDPE outer sheath, black
Technical data
1 Fiber Type
Single mode fiber
9/125 (G.652D or G.657A1)
Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1
Attenuation
at 1310 nm
≤0,38 dB/km
at 1550 nm
≤0,25 dB/km
2 Fibre Colour Coding
Color of fibers in a tube
blue, orange, green, brown, slate, white, red, black, yellow, violet, rose & aqua
Colour of loose tube
natural
Other fiber color sequences available on request.
3 Water blocking Yarn
Type
SZS-15.0 ×4 Root
Color
White
4 Sub Unit - Loose Tube
Materials
PBT - polybutylene terephthalate
Color
White
Diameter
2.1±0.05mm
Number
1 Root
5 Strength Member
Materials
FRP - Glass fiber reinforced plastic rods
Color
White
Diameter
1.0±0.05mm
Number
2 Root
6 Outer Sheath
Materials
PE - Polyethylene
Color
Black
Diameter
6.5 ±0.2 mm
Thickness
0.9±0.1 mm
